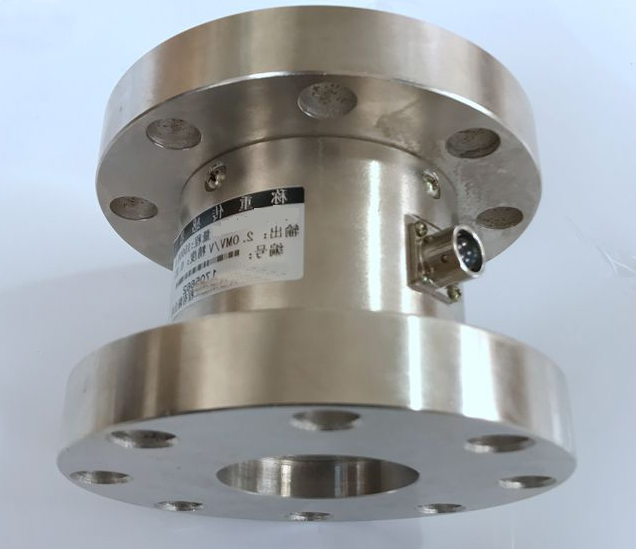

Characteristics & Usage
This series of torque signal coupler with:
1, torque measurement function;
2, energy and signal non-contact transfer function;
3, the output signal digitization function;
4, can pass static torque signal, rotating torque signal, dynamic torque
signal, static torque signal;
5, the transmission signal with whether the rotation, speed and turn
irrelevant;
6, static shell and between the rotating disk without bearings, can adapt to a
long time, high speed operation;
7, high precision, good stability;
8, small size, light weight, easy to install;
9, without repeated zero can be continuous transmission of positive and
negative torque signal;
10, there is no wear ring and other wear parts, you can run for a long high
speed;
11, strong anti-interference;
12, can be any position, any direction to install.
Dimensions (Unit: mm)
Technical Parameters
1, Measure range:5,10,20,50,100,200,500,1000,2000,3000,5000N.m
Divided into nine ranges, three dimensions, non-standard can be customized.
2, accuracy: 0.5% F·S
3, the application speed of 6000 r / min the following
4, ambient temperature: 0 ℃ -50 ℃
5, frequency response: 100 μs
6, the output signal: 0-12v square wave frequency
Load current <10mA.
Zero torque: 10 KHZ
Positive full scale: 15KHZ
Reverse full scale: 5 KHZ
7, the signal socket: (1) 0V. (2) +15 V. (3) -15V. (4) empty (5) Torque signal.
